High Sharpness Profile Projector

home
High Sharpness Profile Projector
High Sharpness Profile Projector
Price And Quantity
  • Unit/Units
  • 1
  • Unit/Units
  • 250000.00 - 700000.00 INR
    Product Description

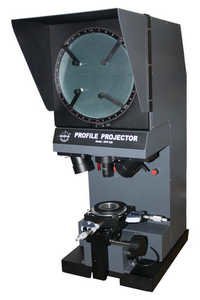

    It is a bench Profile Projector suitable for all types of measurements and inspections in different industries. The equipment ensures high accuracy in dimensional measurements and surface inspections.
    The screen has cross on fine ground glass screen, rotatable through 360 with vernier reading to one minute of an arc and having detachable clips to hold comparator charts. The precision Micrometer Measuring stage with Rotary measuring stage is mounted on the table. The circular graduated scale is divided into 360 in steps of one degree with vernier reading to 6 minutes. Lifelong smooth movement is assured by the incorporation of hard steel balls both in longitudinal and transverse slides.
    High resolution objective lenses specially designed for profile projection under telecentric illumination minimize residual distortion to 0.1%. The basic instrument is supplied with 10x, a multi element coated projection lens. V-Mounts for easy interchangeability of objective lenses are provided. Projection accuracy +0.1% in case of contour and +0.15% in case of surface is maintained. Wide choice of available accessories enhance the scope of applications in various fields.
